Posted: April/02/2018 at 5:34pm  Quote

Join me in my shop as I talk about tools used by scale builders. This episode, I show how balsa strippers work for those that have never used one.


You can find more information on these tools:

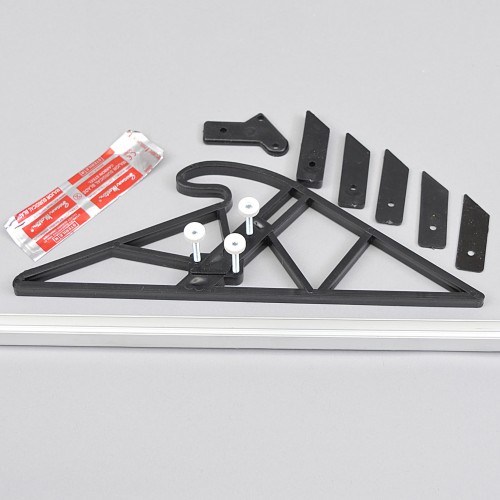

Master Airscrew Balsa Stripper

Xacto Balsa Stripper
(Discontinued but you might find one on eBay or a local hobby shop)

Hope you find it useful!
Mike




__________________
Mike Chilson,
RCSB Founder
--------------------
Update Your Browser!



Back to Top  Printer Friendly Version  Profile  Search  Web

Avatar User Offline dirkske
Lifetime Site Supporter
Lifetime Site Supporter
Joined: March/22/2007
National Flag of Belgium Belgium
Posts: 189
IP Logged
Posted: April/02/2018 at 11:57pm  Quote

For those with a 3d printer, put it to use and print a stripper for each relevant strip width. Search Thingiverse ex: https://www.thingiverse.com/thing:1892640

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline lovetoflyguy
Site Supporter
Site Supporter
Joined: July/03/2005
National Flag of United States United States
Posts: 49
IP Logged
Posted: December/14/2018 at 8:03pm  Quote

I was so excited about this post.....differen't kind of stripper...

__________________
Warbird Alley
Horizon Hobby

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Bentwings
Site Supporter
Site Supporter
Joined: January/21/2020
National Flag of United States United States
Posts: 34
IP Logged
Posted: February/14/2021 at 6:23pm  Quote

I’m going to just add a tip I didn’t see spoken about.


I’ve yet to see a perfectly straight balsa flat. The edge curvature is called camber. Be it wood metal or other supposedly straight material. So you go to the home store and ask for an aluminum straight edge about 3-4 feet long . Yes a yard stick is one name but in machine shop and other shop it’s called a scale or rule. Not ruler. It’s like motors and engines. Strictly shop talk.

So get one of these straight edges preferably an anodized one, mainly because they have slightly rounded edges and are just a little harder.2” wide seemed best for me but I’ll go through the whole display looking for the one with the least camber. Dead straight is the “keeper one.

Now to use this carefully bought piece.
The project I’d to start lsying the planking or making parts with dead straight edges.

Tak the chosen balso flat stock and lay it flat on the table. , wiggle the straight edge of the sluminum so it has about equal amounts to be trimmed off the sheet on each edge. You may want to clamp it down. Then take your exacto knif with a new #11 blade and slice the edge if the balsa sheet. This now gives you a working edge.
Using you stripper again new #11 blade and cut strips what ever width you like. I use about 3/8” wide for fuselage and nacelle covering. Usually you can cut a number of strips before retriming .

I’ve tried angle cuttin to make tighter seams but I just never seem to get good results. I use yellow glue as it sands easy when hard. I don’t use CA excep to stick them to bulkheads as it is very hard to sand.a little water and ammonia works wonders for shaping too. I don’t do sheets when planking as it’s too hard to hold alignment. I think this is old school but it sure works for me.
I’ve seen dollhouse builders do this with ship lap sides that were so perfect it was scary.


Byron
Th

__________________
Lifetime builder

Back to Top  Printer Friendly Version  Profile  Search

Avatar User Offline Bentwings
Site Supporter
Site Supporter
Joined: January/21/2020
National Flag of United States United States
Posts: 34
IP Logged
Posted: February/14/2021 at 6:29pm  Quote

I did view the video. I have one of those strippers that has to 30-40 years old. Plus a similar one I got at Toleo 20 years ago. Many packs of 100 #11 blades have gone through them.

Byron.

__________________
Lifetime builder

Back to Top  Printer Friendly Version  Profile  Search

]
] ]
