Author / Post

	abufletcher Site Supporter	Joined: March/11/2004 United States Posts: 10619 IP Logged
Posted: December/30/2025 at 3:29am		Quote

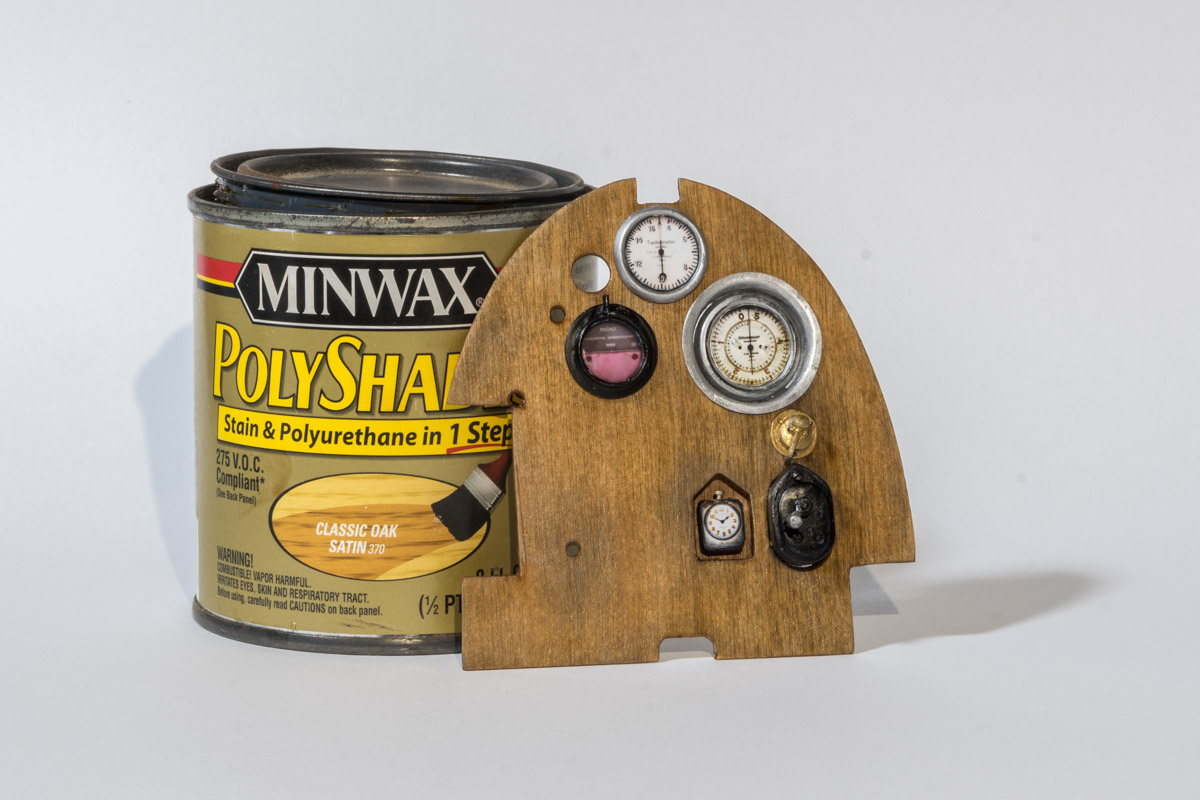

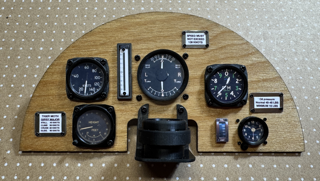

Many WWI aircraft had fairly basic instrument panels and can be fun to scratch-build...as I did this one for a 1:8 scale Phoenix CI.

With more modern aircraft, achieving an authentic looking panel probably requires a CAD/3D printing approach.

__________________
Whatever you can do, or dream you can, begin it. Boldness has genius, power, and magic in it. - Goethe

	ScaleAero Supporting Vendor	Joined: September/09/2003 United States Posts: 10716 IP Logged
Posted: December/30/2025 at 3:48am		Quote

If a clear, precisely drawn panel in 2D were created as a properly scaled template from a 90+ year old b/w photo…it could provide time saving accuracy and superior results. Not to be removing any craftsmanship aspects of this hobby.

__________________
Ed
Flite-Metal For The Look Of The Real Thing
My Link

	Boeing Site Supporter	Joined: February/15/2021 Canada Posts: 38 IP Logged
Posted: December/30/2025 at 9:36am		Quote

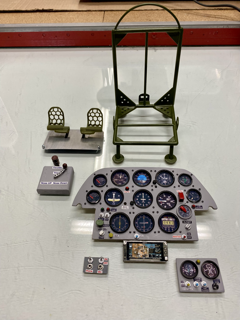

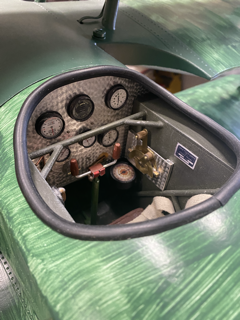

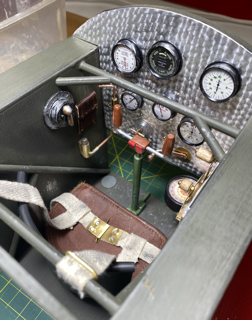

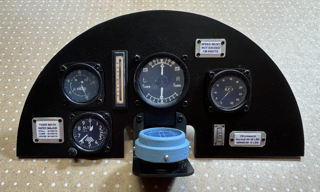

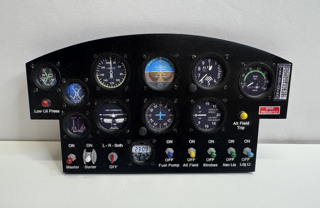

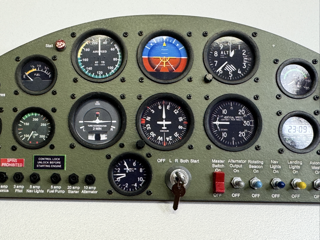

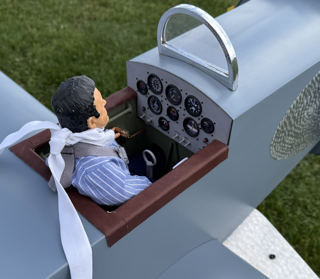

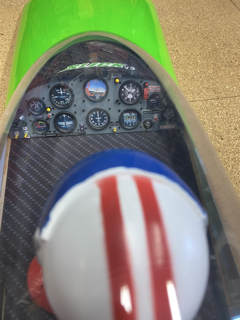

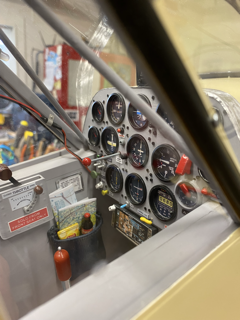

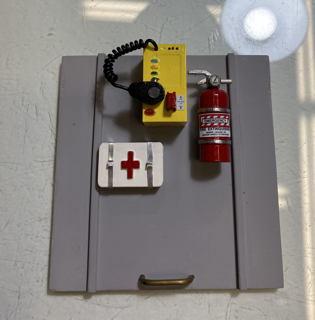

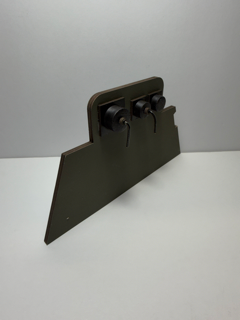

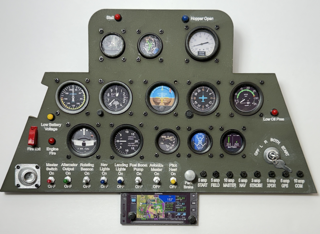

Here are a few examples of 1/4 scale projects that I have created for other modelers. Previously, I used a filament 3D printer, but I was dissatisfied with the resolution. Now, I exclusively print all my components using a resin printer. I have designed custom panels, and the modeler assembles these panels as a kit. I have been pleasantly surprised by the number of modelers who have incorporated my panels into their ARFs as eye candy.

	drkey Site Supporter	Joined: May/23/2022 United States Posts: 38 IP Logged
Posted: December/30/2025 at 12:34pm		Quote

I too am considering upgrading to a resin printer for the same reasons. FDM is great for large pieces, but the detail pieces I want to do, resin is where its at. If you dont mind me asking, what model resin printer do you use?

__________________
Derek
Charleston, Arkansas
USAF Retired Crew Chief (F-15, F-16, A-10)

Flying:
Phoenix Stinson Reliant DLE30
Phoenix P-47 (10s EP)
Building:
Meister 1/5 P-47
Ziroli P-51
Scratch 1/5 Waco SRE

	Mustangs22 Lifetime Site Supporter Ernest	Joined: January/30/2015 United States Posts: 2042 IP Logged
Posted: December/30/2025 at 12:58pm		Quote

Boeing, I salute YOU. Those examples are absolutely amazing!

__________________
Ernest

Building: JB Mitsubishi Ki-51
Building: JB Buffalo Brewster
Finished: JB Bücker 180 Student and Flying
Finished: AC PT-19A and Flying

	Boeing Site Supporter	Joined: February/15/2021 Canada Posts: 38 IP Logged
Posted: December/31/2025 at 5:18pm		Quote

Quote: drkey

The resin printer I use is a "Photon Mono M5s Pro" and I'm very pleased with it. Although I have recently upgraded my FDM printer to a "Bambu P2S" and must say it does amazing quality work as well. One thing to keep in mind with resin printing it's not as easy as picking your project of the build plate of a FDM printer. It can be messy, you have to wash and dry/UV your work.

	Boeing Site Supporter	Joined: February/15/2021 Canada Posts: 38 IP Logged
Posted: December/31/2025 at 5:19pm		Quote

Quote: Mustangs22

Boeing, I salute YOU. Those examples are absolutely amazing!

Thank you
